This £55m building forms part of a major development to establish a ‘Health & Life Sciences’ zone within the University of Reading’s Whiteknights Campus.

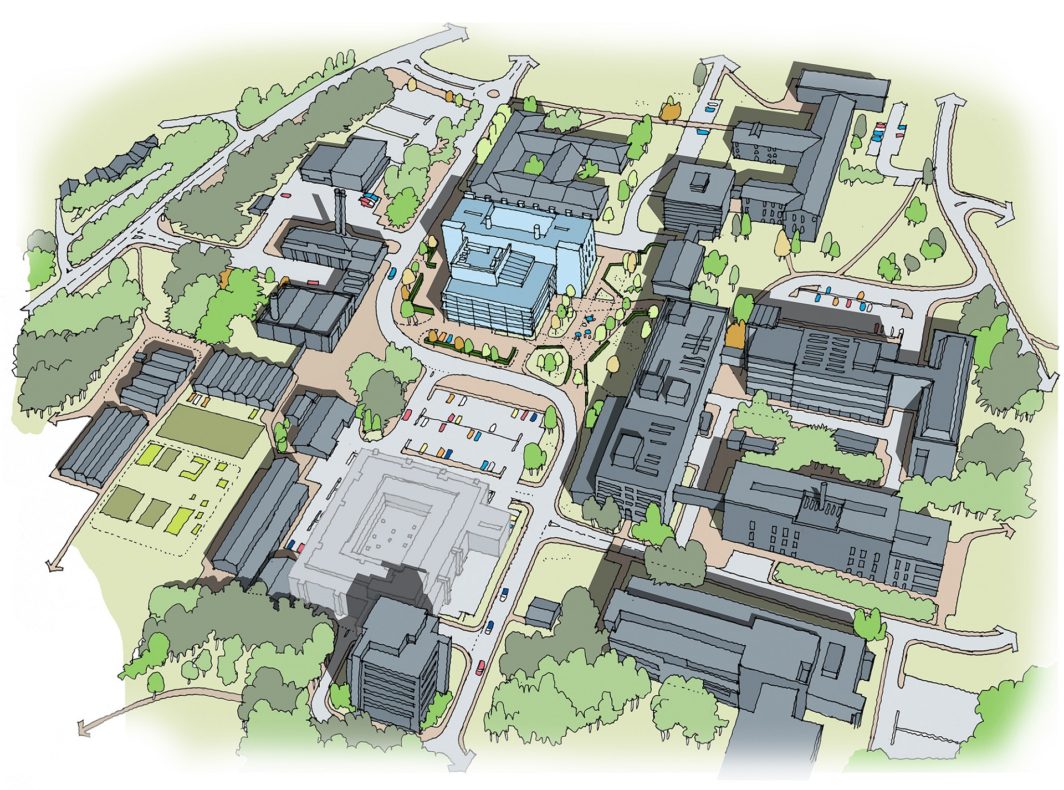

The University of Reading is developing a new ‘Health and Life Sciences Teaching Zone’ to support their strategic commitment to the life sciences, which they regard as a key scientific area with sustained long-term growth potential.
Complex rationalisation and phasing
The new Health and Life Sciences Building is a critical part of that commitment. Located on the Whiteknights Campus in Reading, the project provides a new-build home for the School of Biological Sciences, which used to be spread across four outdated buildings, all of which will eventually be demolished.
Appointed in 2015, our brief was to oversee the enabling works and design a new building that provides flexible, future-resilient teaching and research laboratory space. The finished building had to be capable of holding both small and very large classes of students in its teaching laboratories, but also accommodate future evolution in the subjects the University teaches and its fields of research.
The new multi-purpose building houses the Departments of Ecology and Environmental Biology, Biomedical Science, and Bioinformatics. It comprises a central atrium featuring a café and the University’s Cole Museum of Zoology, with spectacular displays that include a False Killer Whale and the skeleton of a large elephant.
Rational high-tech layout
Two asymmetrical wings flank the atrium. The smaller three-floor wing contains write-up and collaboration spaces, and offices.
The larger of the wings – 50 m x 20 m – contains four storeys of state-of-the-art wet laboratories, topped by a floor of plant.
A ‘superlab’ occupies the ground floor, used for teaching undergraduates and a further two floors of Containment Level 2 labs used by researchers in the Institute of Cardiovascular and Molecular Research (ICMR), Ecology and Environmental Biology and Micro-biology.
We developed the ‘superlab’ after analysing the University’s teaching needs. The space occupies the wing’s entire footprint. In its largest configuration, it can seat 280 students at once. A sophisticated AV system ensures that all students can see and hear the lecturer. When classes are smaller, the space can be easily subdivided into several configurations, ultimately into two 80-seat and two 60-seat labs.
Enabling a shared asset culture for added value
Our design for the two floors of Containment Level 2 labs imports best practice in lab planning. By encouraging an open culture of sharing assets – controlled environment rooms, microscopy, tissue culture suites, freezer and cold rooms – between different disciplines, it is possible to optimize the use of energy, equipment, and space.
This shared asset culture also sets the stage for better collaboration between otherwise isolated disciplines. We beat best-practice space efficiency benchmarks by about 20% by planning our lab layouts carefully. The net-to-gross internal area ratio is kept high, reducing the budgeted cost per m2 of useable space accordingly.
We collaborated closely with our engineering partners to ensure that the architectural form could accommodate the needs of all the specialist systems and technical equipment. As a consequence, the structure in the laboratory wing is optimally efficient, controlling structural vibration without unnecessary waste. This same economy of design keeps service distribution flexible.
Stride Treglown were able to interpret the University’s brief and propose maximum lab flexibility by moving to a shared asset culture for key areas of teaching, research and technologies (confocal microscopy, tissue culture, controlled environment rooms etc.). The design process provided excellent engagement and management of various complex stakeholder groups.
Colin Robbins, Director of Estates, University of Reading
Wayfinding signage and building graphics

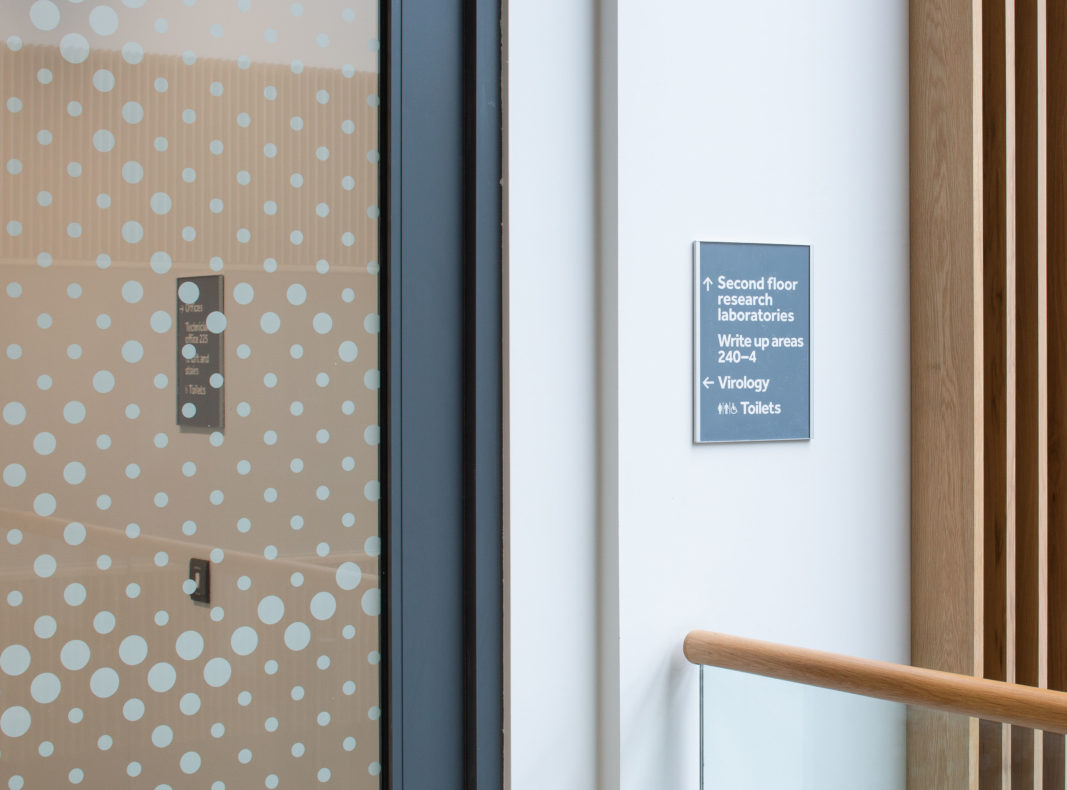

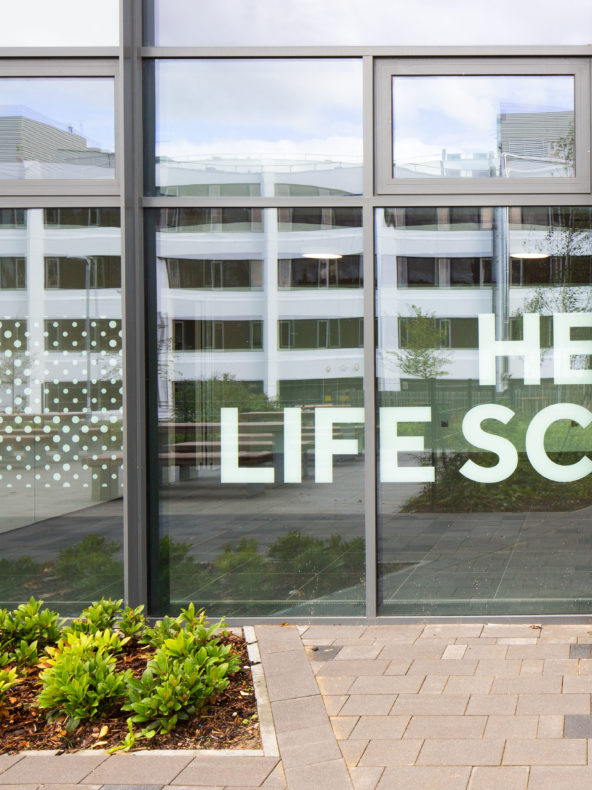

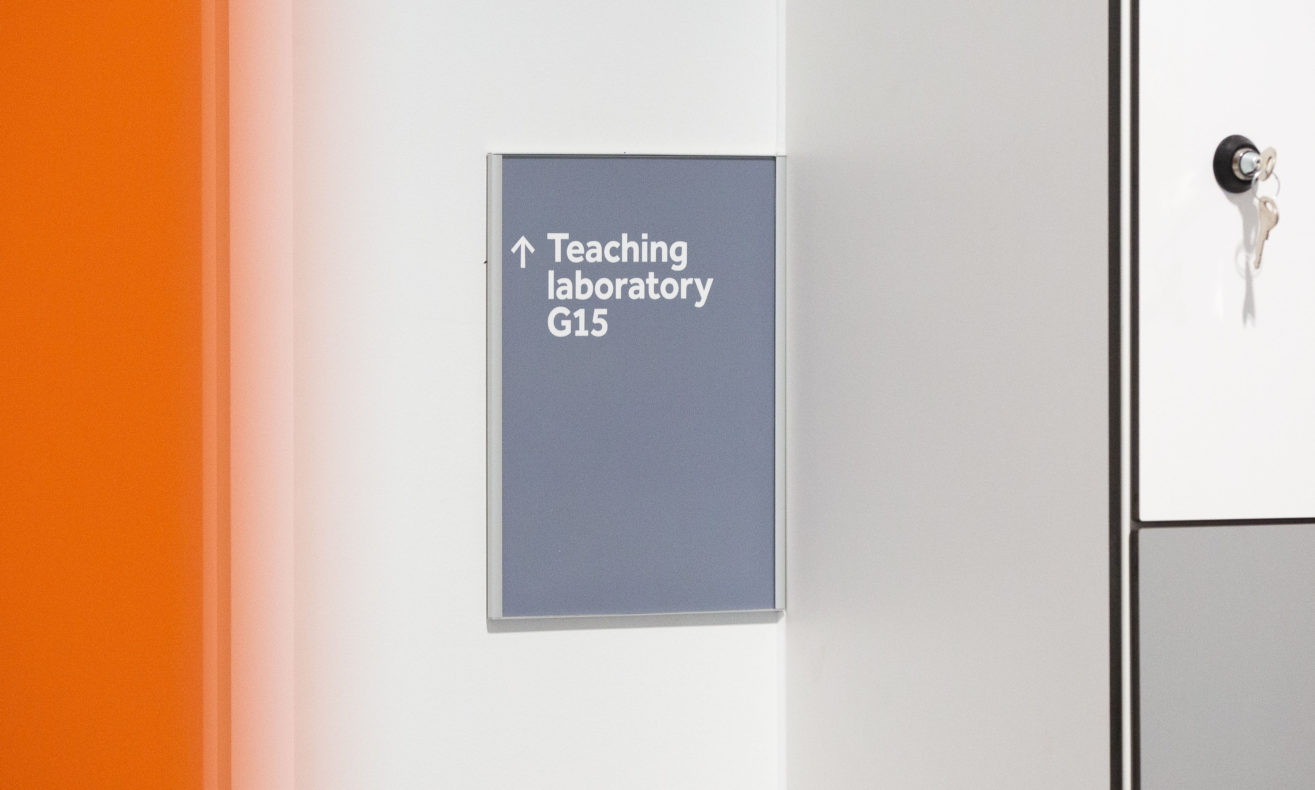

Stride Treglown Graphic Design created a collection of wall and glazing graphics for the University of Reading’s new Health and Life Sciences faculty building. As part of the project we also designed the wayfinding scheme and associated signs.

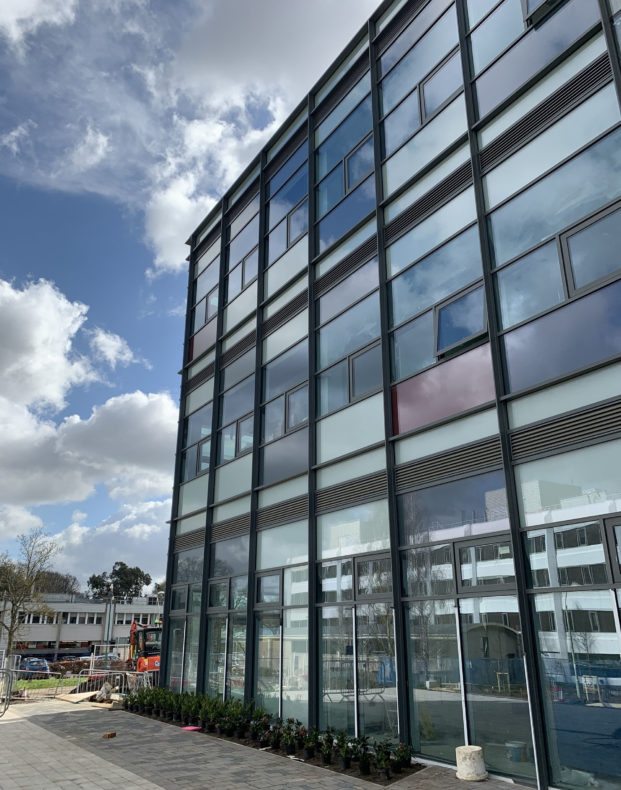

The focal point of the scheme is a 2 storey 11.5 metre high graphic to the main glazed facade. The graphic, an interpretation of a dragonfly wing, is directly printed on to the main glazed façade.

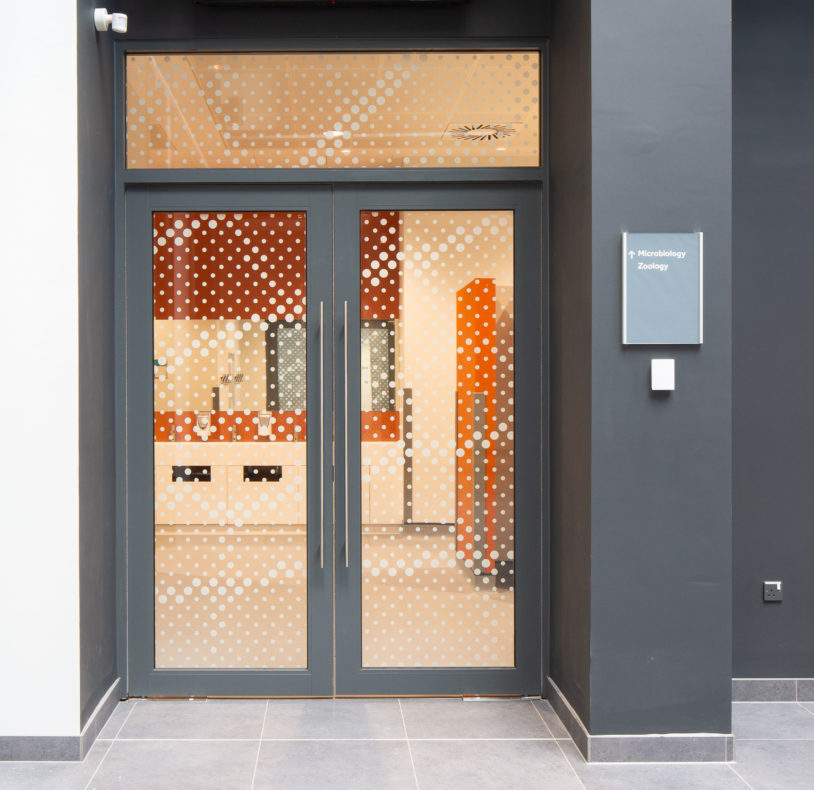

Internally, wall graphics, large scale wayfinding items, and manifestations use sections of the dragon fly graphic to carry the theme throughout the building.

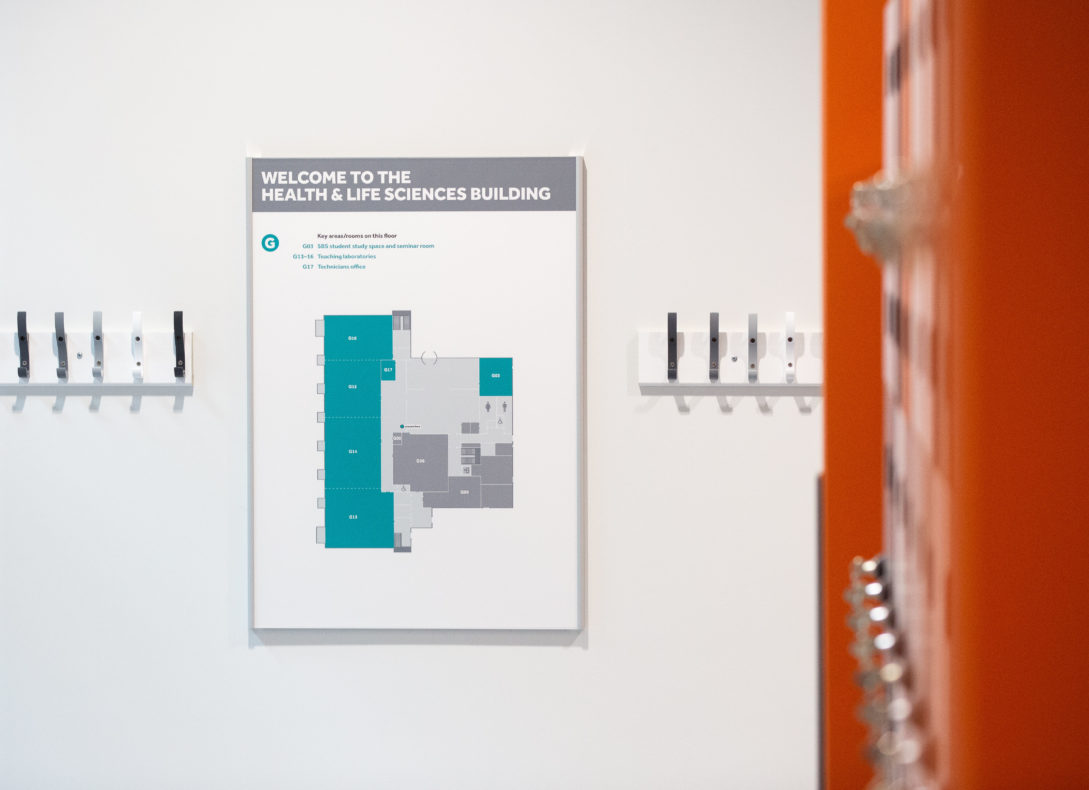

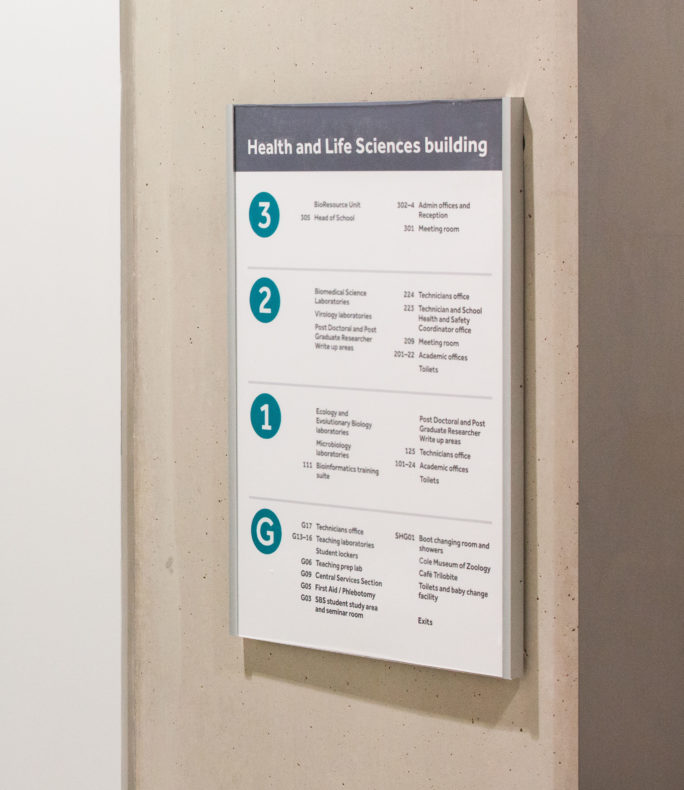

The comprehensive wayfinding scheme and signs we created for the building, both internally and externally, applied the University’s own sign design guidelines for continuity of style in the campus setting.
