22 Handyside Street

Aesthetic sensitivity married with technical expertise enhances elegant office development.

King's Cross, London
Concept Architect
Coffey Architects

22 Handyside Street is a stunning three storey steel framed office building with ground floor retail delivered for Argent in King’s Cross.

Completed in October, the building’s shimmering façade and rakish angular roof belie an underlying structure of extraordinary complexity and precision engineering.

With a prestigious anchor tenant already confirmed and the logistical difficulties of the COVID-19 lockdown successfully managed, its execution relied on Stride Treglown’s expertise to translate Coffey Architects’ vision into a buildable reality.

The context and background

Argent’s vision and ambition in regenerating an industrial wasteland to the north of King’s Cross train station has resulted in a masterplan full of unique architectural landmarks. 22 Handyside Street sits at the northern corner of the intersection between York Way and Handyside Street. The irregular-shaped site occupies a significant gateway location on the masterplan’s eastern edge.

Agile response to brief

BAM, the main contractor, inherited the project from Carillion in January 2018 and invited us to provide architecture and BIM services to rationalise the concept design for construction without compromising its aesthetic detail. Being a shell-and-core office development with one small retail space on the south-west corner, a substantial amount of time was spent on the sleek and detailed exterior.

Meeting the technical challenges

Resolution of the building’s intricate complexities both internally and externally would have been exceptionally difficult without a comprehensive 3D BIM model and our technical expertise behind creating one. Our model enabled us to collaborate with the wider design team quickly and efficiently, perform clash detection, produce comprehensive construction work packages alongside realistic visuals and resolve complex geometry for accurate manufacture.

Resolving complex geometry and façade

Our first challenge was to resolve the highly constrained roof and façade interface geometry so that it could be accurately coordinated and manufactured. The development of detailed 3D models allowed us to express to the design team the hidden complexity of the project, and how we were proposing to resolve it. In the end we developed a unique parapet profile for each section of façade.

Aesthetic sensitivity

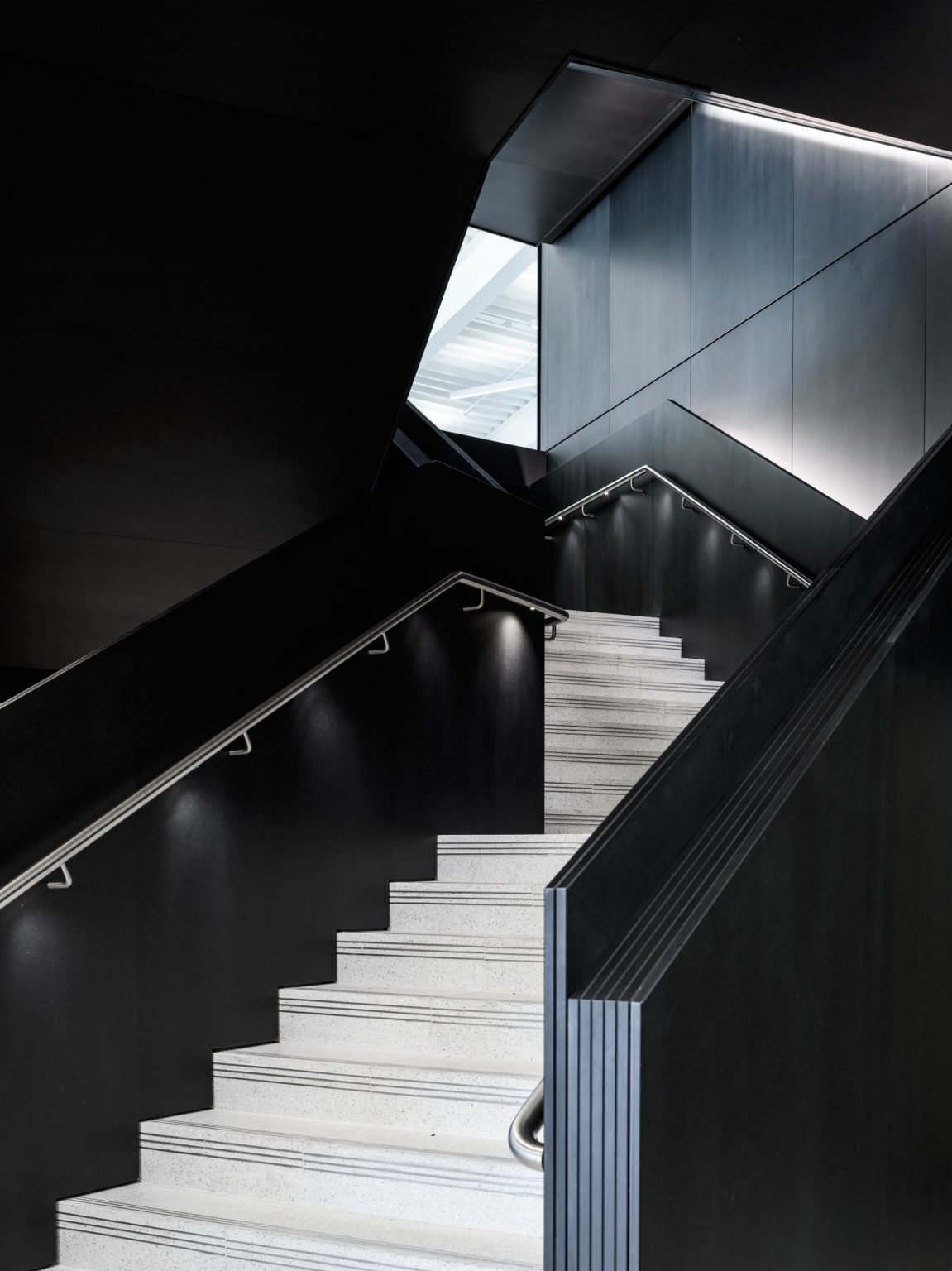

The majority of the internal finishes were of a bespoke nature, delicate terrazzo tiling both internally and externally co-ordinated to align perfectly with the building’s angular interfaces. Intricate patterning for the second floor vaulted acoustic ceiling was created, as too was similarly precise co-ordination of the internal Valchromat wall and stair panelling to interface with bespoke light fittings, internal services, doors and screens.

Design for longevity

The building’s position astride live underground train tunnels necessitated close coordination with the structural engineers to incorporate many movement joints in the ground floor slab, tiling and elsewhere in the super-structure. While these complications are not visible in the finished building, they will improve its durability and longevity.

Elegant sustainability

Throughout the project we provided drawings and data to support the building’s BREEAM Outstanding aspiration, whether that was by demonstrating evidence in relation to visual comfort and daylighting, information on the responsible sourcing of materials or providing the data surrounding the use of water efficient sanitary ware, we were able to deliver accurate and timely information.
